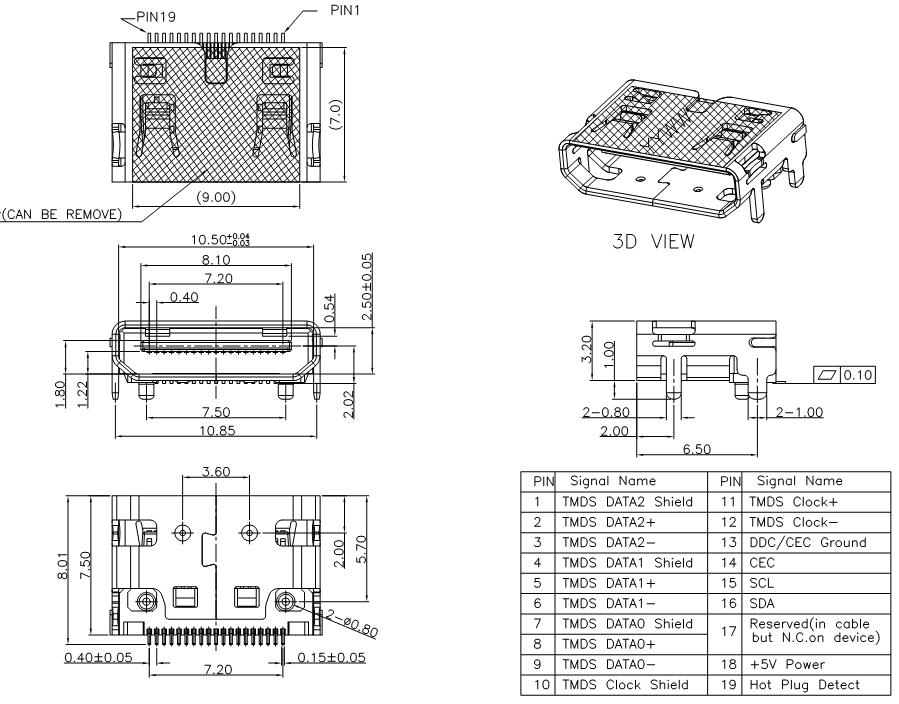

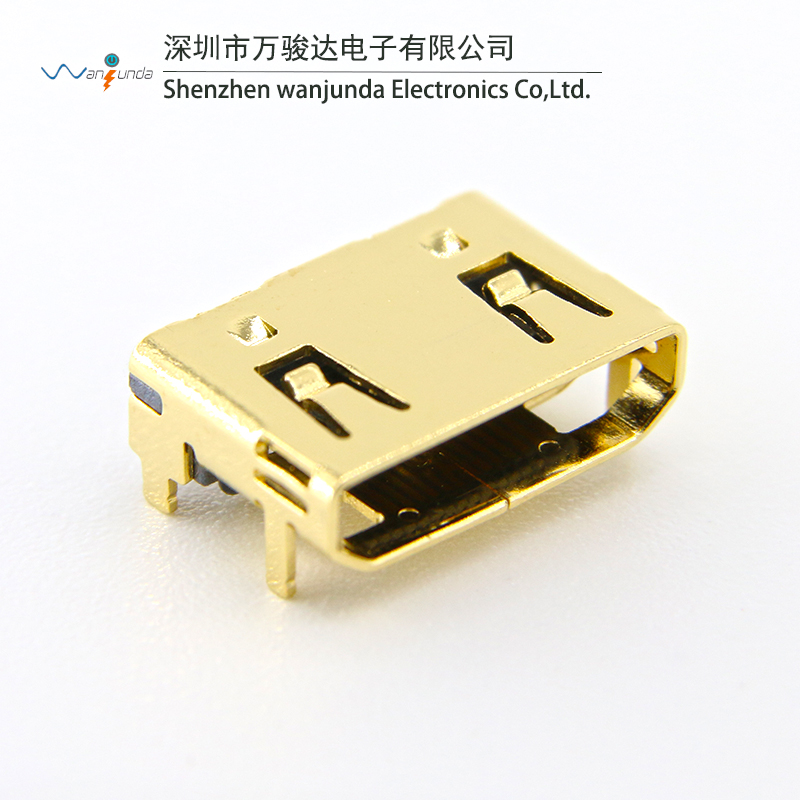

HDMI C TYPE母座

电气特性:Electrical:
1.额定电流：Current Rating 0.5A/contact terminal
2.额定电压：Voltage Rating 40V DC
3.接触阻抗:Contact Resistance 30 milliohms MAX
4.耐电压:Dielectnic Withstanding Voitage 500V AC AT Sea Levol
5.绝缘阻抗:Lnsulation Resistance: 100MEGA ohms MIN
物理性能:Mechanical:
1.插拔力：Cnnector Mate and Unmate Force Mate force:1-4kgf Unmate force:1-4kgf(MIN)
2.端子保持力：Terminal Retenion 0.5kgf(MIN)
原材料:Matorial:
1.塑胶:Housing: Hing Temperature Tnermaplastics,Ul 94V-0 LCP Black
2.端子:Contact:Copper Alloy C5191
电镀:Finish:
1.端子:Contact: Piated Gold in Mating Area;Tin On Solder Talls
2.外壳:Shell:Nickel Plating
